SPHOORTI | DRIVEN TOOL HOLDER | AXIAL TOOL HEAD-ROUND | INT NUT

Mô tả

DRIVEN TOOL HOLDERS for cnc turn / mill centers as per din 5482, 5480, 1809 & other types of driven end coupling

Chi tiết

  • Sphoorti is one of the trusted manufacturer and supplier to many industries (machine tool) in the whole world.
  • Wherein, company is gradually growing, by providing superb quality products and also assists in improving the latest technology.
  • Also, company expert team checks the production capacity, as well as tests these products thoroughly to make it suitable to sell to the final customers.
  • They have separate Lab for Quality Checking, and the products we manufacture are usually scheduled as well as inspected randomly.

  • Expert team of Sphoorti, are able to manufacture the superb quality VDI Tool Holder which uses high standard materials acquired from the certified vendors, and the whole holder is checked perfectly to find out the high quality.
  • Some of the useful features that make this tool holder unique are the corrosion-free, as well as the long-lasting service. While, the tool holder has been formed to work under higher pressure at less time period.

SPECIFICATIONS

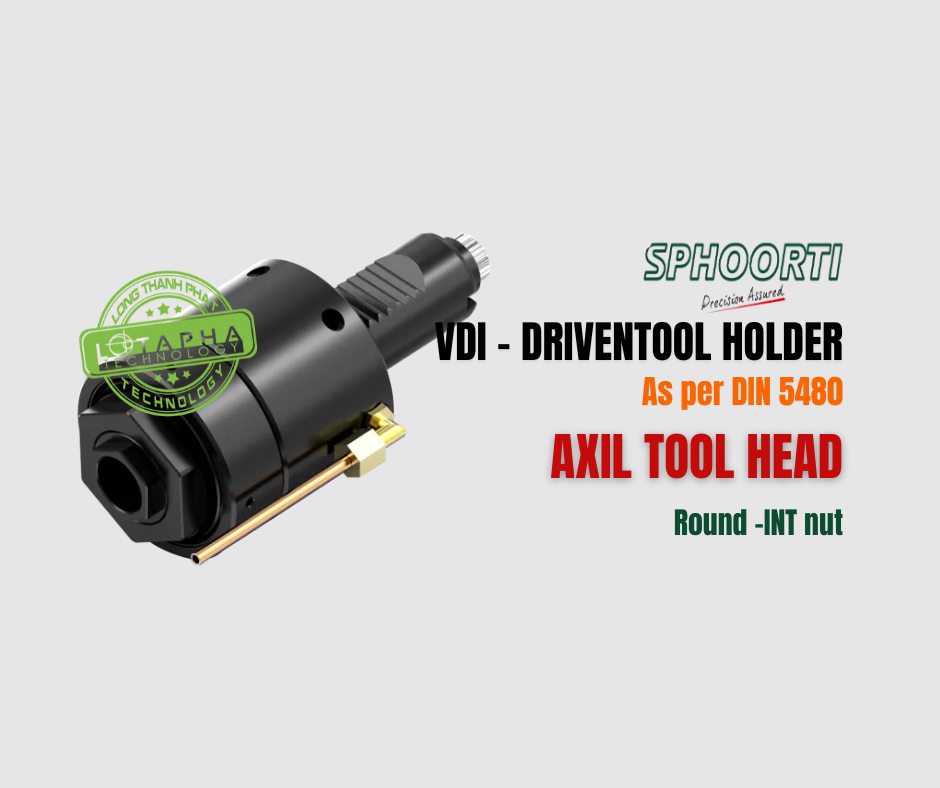

Axial Tool Head-Round - INT NUT
CODE Ødh6 A B C E ØX I Nmax
RPM
S
(DIN 6499)
TNm P TOOL DISC TYPE
SD6402 25 76 57 48 58 1-13 1:1 6000 ER20 25 W14X0.8X30°X16-9b DRIVEN TOOL DISC VDI Ø25 BORE
SD6117 30 80 67 55 68 1-16 1:1 6000 ER25 40 W16X0.8X30°X18-9b DRIVEN TOOL DISC VDI Ø30 BORE
SD6117 30 80 67 55 68 2-20 1:1 5000 ER32 70 W20X0.8X30°X18-9b DRIVEN TOOL DISC VDI Ø40 BORE
