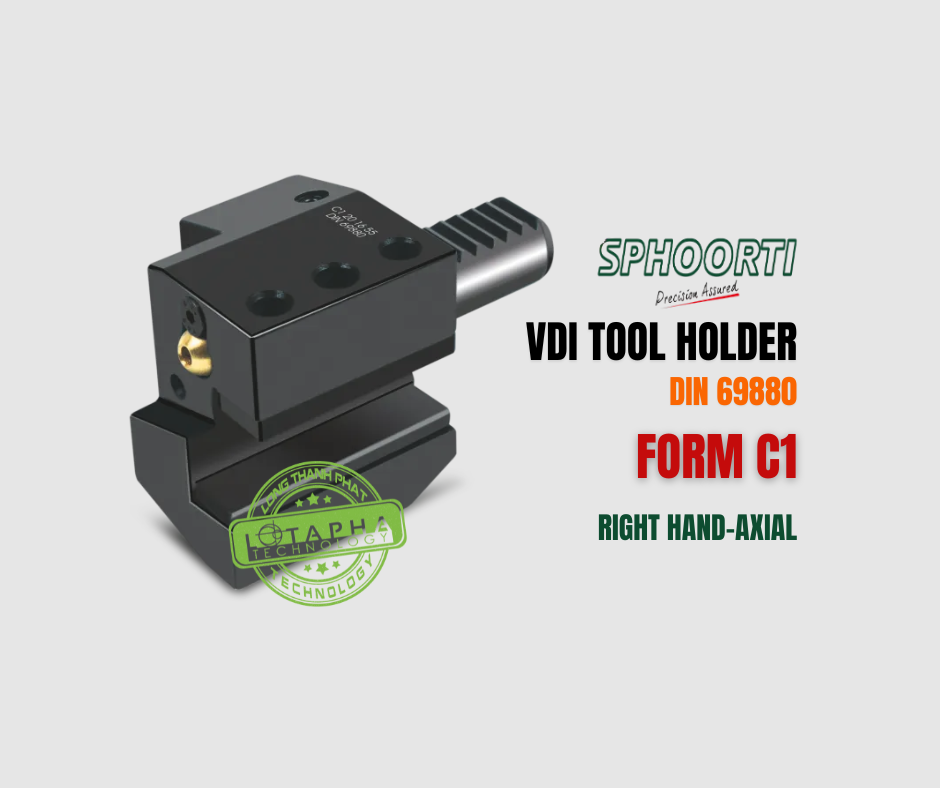

SPHOORTI | VDI TOOL HOLDER | RIGHT HAND AXIAL | FORM C1

Tải xuống Catalogue

FOR CNC TURNING CENTER & TURN MILL CENTER

VDI TECHNOLOGY

The VDI system is a quick change clamping systems for each tool holder within the tool dics.
Tool changes can therefore be performed within seconds, rather than minutes as with the traditional block system.

FEATURES

VDI tool holders are made as per DIN 69880
Tool holders are made by toughened steel C-45 as well as case hardned steel 20MnCr5.
Our standard supply will be in toughened steel C-45 for form A, B, C, D, E1, E2 & Z varieties.
Case hardened steel 20MnCr5 for form E4 & F varieties.
Our standard tool holder are fully blackened.
Shank white, teeth white, tool holder seating surface white will be given on request.

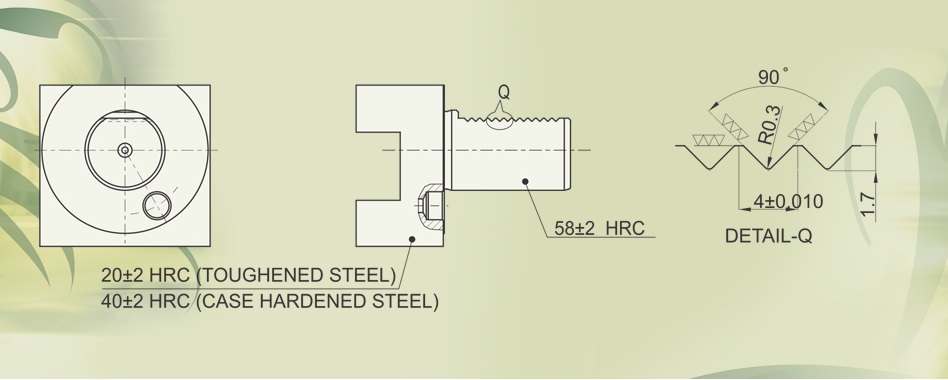

The tool holder shank portion are heat treated to 58+-2 HRC, and the teeths are ground.

SELECT OF VDI TOOL HOLDER


	Spindle Rotation clockwise application of OD Turn and Face		Spindle Rotation clockwise application of Face and ID Bore


	Spindle Rotation Anticlockwise application of OD Turn and Face		Spindle Rotation Anticlockwise application of Face and ID Bore

SPECIFICATIONS

RIGHT HAND SHORT-RADIAL FORM B1
CODE	d1	b1	b2	b3	h1	h3	h4	h5	h6	h8	l1	l2	a
B1 16 12 24	16	42	23	5	12	15	15	20	22	19	13	24	30°
B1 20 16 30	20	55	30	7	16/12	19	19	25	30	23	16	30	30°
B1 25 16 30	25	55	30	7	16/12	23	23	25	30	25	16	30	30°
B1 30 20 40	30	70	35	10	20/16	26	22	28	38	30	22	40	25°
B1 40 25 44	40	85	43	13	25/20	35	30	33	48	–	22	44	–
B1 50 32 55	50	100	50	16	32/25	42	35	35	60	–	30	55	–
B1 60 32 60	60	125	63	16	32/25	46	43	43	63	–	30	60	–
