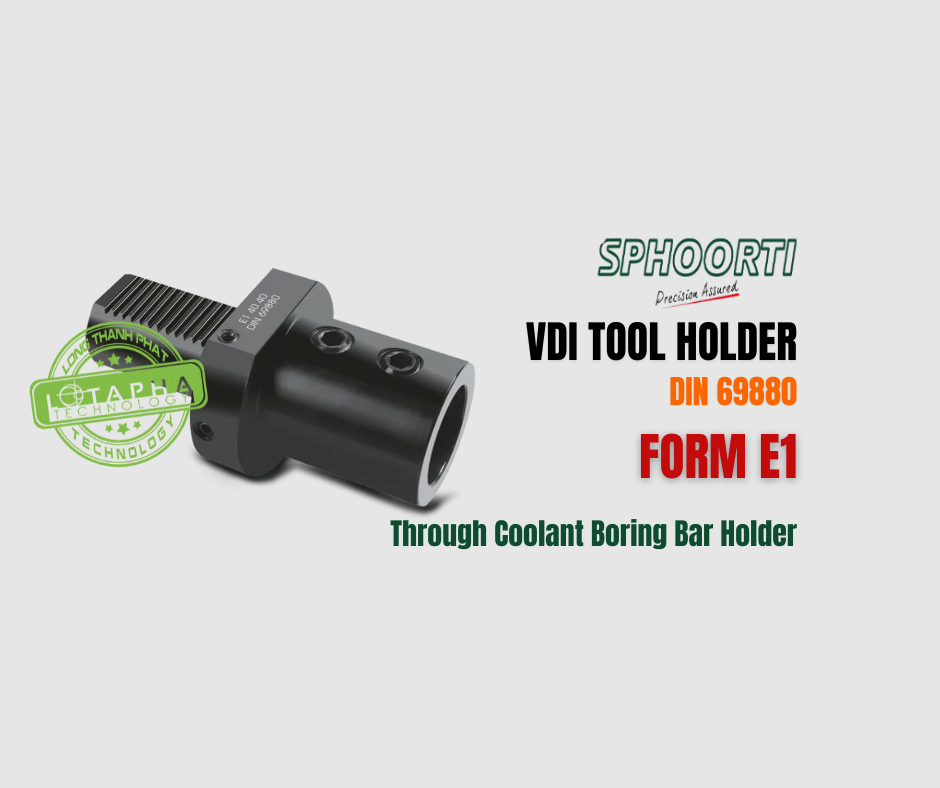

SPHOORTI | THROUGH COOLANT BORING BAR HOLDERS | FORM E1

Tải xuống Catalogue

FOR CNC TURNING CENTER & TURN MILL CENTER

VDI TECHNOLOGY

The VDI system is a quick change clamping systems for each tool holder within the tool dics.
Tool changes can therefore be performed within seconds, rather than minutes as with the traditional block system.

FEATURES

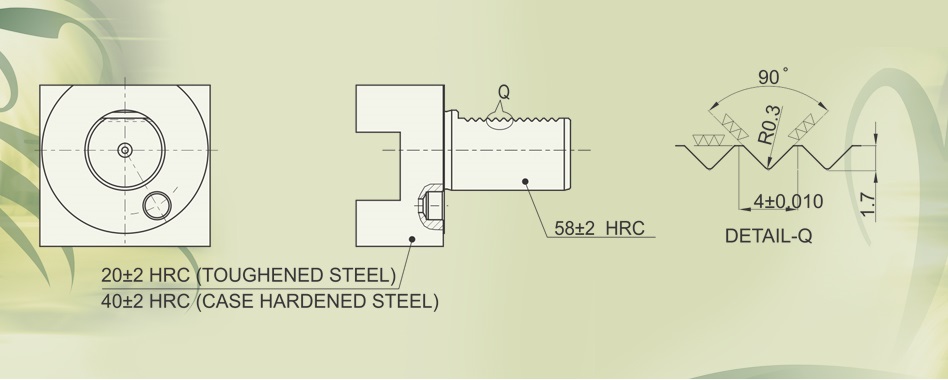

VDI tool holders are made as per DIN 69880
Tool holders are made by toughened steel C-45 as well as case hardned steel 20MnCr5.
Our standard supply will be in toughened steel C-45 for form A, B, C, D, E1, E2 & Z varieties.
Case hardened steel 20MnCr5 for form E4 & F varieties.
Our standard tool holder are fully blackened.
Shank white, teeth white, tool holder seating surface white will be given on request.
The tool holder shank portion are heat treated to 58+-2 HRC, and the teeths are ground.

SELECT OF VDI TOOL HOLDER


	Spindle Rotation clockwise application of OD Turn and Face		Spindle Rotation clockwise application of Face and ID Bore


	Spindle Rotation Anticlockwise application of OD Turn and Face		Spindle Rotation Anticlockwise application of Face and ID Bore

SPECIFICATIONS

THROUGH COOLANT BORING BAR HOLDER
CODE	d1	d2	d3	d4	d5	d6	h1	h2	l1	l2	l3	l4	α
E1 20×16	20	16	36	12	M10x1	50	–	23	64	51	18	15	35
E1 20×20	20	20	40	12	M10x1	50	–	23	67	54	18	15	35
E1 20×25	20	25	45	17	M12x1	50	–	23	71	59	18	17	40
E1 25×20	25	20	40	12	M10x1	58	25	25	67	54	18	15	35
E1 25×25	25	25	45	17	M12x1	58	25	25	71	59	18	17	40
E1 30×16	30	16	36	12	M10x1	68	28	30	64	51	22	15	35
E1 30×20	30	20	40	12	M10x1	68	28	30	67	54	22	15	35
E1 30×25	30	25	45	17	M12x1	68	28	30	71	59	22	17	40
E1 30×32	30	32	52	24	M12x1	68	28	30	75	63	22	17	44
E1 30×40	30	40	65	32	M16x1	68	28	30	90	73	22	22	50
E1 40×16	40	16	36	12	M10x1	83	33	–	64	51	22	15	35
E1 40×20	40	20	40	12	M10x1	83	33	–	67	54	22	15	35
E1 40×25	40	25	45	17	M12x1	83	33	–	75	59	22	17	40
E1 40×32	40	32	52	24	M12x1	83	33	–	75	63	22	17	44
E1 40×40	40	40	65	32	M16x1	83	36	–	90	73	22	22	50
E1 50×20	50	20	40	12	M10x1	98	35	–	67	54	30	15	35
E1 50×25	50	25	45	17	M12x1	98	35	–	80	59	30	17	40
E1 50×32	50	32	52	24	M12x1	98	35	–	80	63	30	17	44
E1 50×40	50	40	65	32	M16x1	98	35	–	90	73	30	22	50
E1 50×50	50	50	75	42	M16x1	98	35	–	100	83	30	24	60
E1 60×20	60	20	40	12	M10x1	123	43	–	80	54	30	15	35
E1 60×25	60	25	45	17	M12x1	123	43	–	80	59	30	17	40
E1 60×32	60	32	52	24	M12x1	123	43	–	80	63	30	17	44
E1 60×40	60	40	65	32	M16x1	123	43	–	90	73	30	22	50
E1 60×50	60	50	75	42	M16x1	123	43	–	100	83	30	24	60
