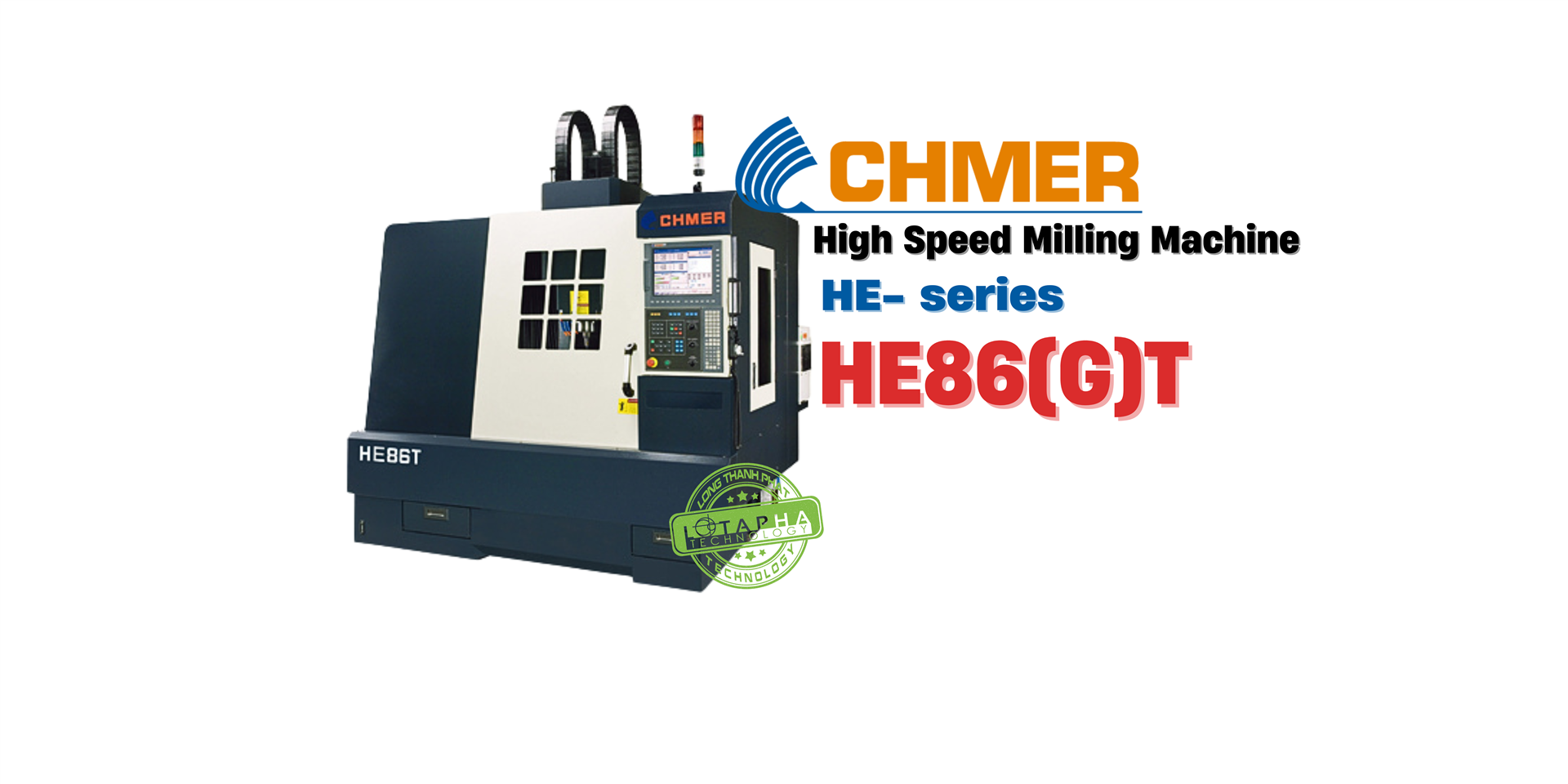

CHMER HM86(G)T | MÁY PHAY TỐC ĐỘ CAO - HE SERIES

HIGH ACCURACY: ECONOMICAL POSITION
HIGH PRODUCTIVITY: APPLICATION DRIVEN
HIGH EFFICIENCY: UTMOST PERFORMANCE INTEGRATION, SOLUTION & AUTOMATION

Features

Laser Calibration

Laser measurement of X and Y Axis using high quality super precision linear guide ways and ball screws.
Either 28mm or 40mm diameter used. (depending on model) assure precise positioning, accuracy and long endurance life.

Ball Bar Calibration

Renishaw ball bar testing used to test and record each machine's X and Y simultaneous movements.
This guarantees ideal and accurate table movement and ball screw backlash.

Simplified & Modulated Circuit Design

This makes easy maintenance due to modulated circuit board design, just change the pcb when trouble occurred.
Equipped with air cooling system for thermal regulation inside the generator.
This provides better efficiency and longer electronic life with in the system.

Specification

Model	Unit	HE86(G)T
Spindle speed (Max.)	RPM	3000-30000
Spindle taper	-	HSK-E50
Spindle motor (S1/S6)	KW	15/17
Woking Table Size	mm	850x600
T-slot	mm	16x5x100
Max. Load of table	kg	800
Travel (XxYxZ)	mm	800x600x400
Dist. from table surface to spindle nose	mm	160-560
Work feed	M/min	10
Rapid Traverse (X, Y, Z)	M/min	30
X.Y.Z. axis servo motor	-	AC servo motor
Total power consumption (Max.)	KAV	30
Net Weight	kg	7500

Controls

Unique CHMER Control Developed Exclusively for High Speed Milling Machine

Using CHMER's exclusive CNC controller and proprietary software, we can provide the user with the latest software updates continually to optimize the machine functions and take advantage of new machining technologies.
Using IPC568 CPU board.
CPU spec's 586 400
High capacity CF CRAD (1Gbytes)
15" full color TFT LCD screen
All software and hardware are with full authorization.
