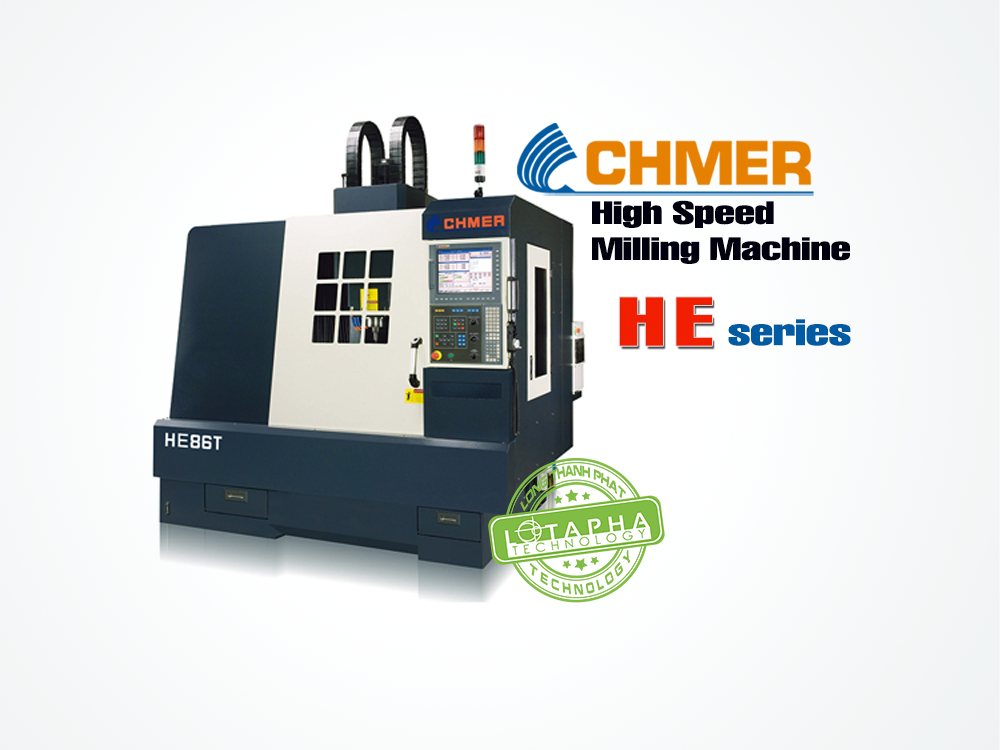

CHMER | HE - SERIES | MÁY PHAY ĐIỆN CỰC EDM

Tải xuống Catalogue

Mô tả

Chi tiết

1. Features
     1.1 aaa
     1.2 aaa
     1.3 aaa
2. Specifications
     2.1 HE43(G)T
2.2 HE65(G)T
2.2 HE86(G)T
3. Accessories
4. Product media

Machine Features

Machine Specifications

Specifications
Model	Unit	HE43(G)T	HE65(G)T	HE86(G)T
Spindle speed (Max.)	RPM	8000-30000
Spindle taper	-	ISO25(ER20)	HSK E40	HSK-E50
Spindle motor (S1/S6)	KW	3/5	10/11.5	15/17
Woking Table Size	mm	500x400	540x650	850x600
T-slot	mm	14x4x100	16x5x100	16x5x100
Max. Load of table	kg	200	300	500
Travel (XxYxZ)	mm	400x300x200	500x600x300	800x600x400
Dist. from table surface to spindle nose	mm	100-300	150-450	160-560
Work feed	M/min	10	10	10
Rapid Traverse (X,Y,Z)	M/min	15	18	30
X.Y.Z. axis servo motor	-	AC servo motor	AC servo motor	AC servo motor
Total power consumption (Max.)	KAV	15	25	35
Net Weight	kg	2680	4300	7500

Standard / Option Accessories

Optional Accessories	● Standard ○ Option
Buit in Spindle	HE43(G)T	HE65(G)T	HE86(G)T
HSK E32/30000rpm(Grease) 3~5KW	●	ꟷ	ꟷ
HSK E32/36000rpm(Oilmist) 3~5KW	○	ꟷ	ꟷ
HSK E40/30000rpm(Grease) 10~11.5KW	ꟷ	●	ꟷ
HSK E40/36000rpm(Oilmist) 10~11.5KW	ꟷ	○	ꟷ
HSK E40/30000rpm(Grease) 10~11.5KW (Vector)	ꟷ	○	ꟷ
HSK E50/36000rpm(Oilmist) 15~17KW (Vector)	ꟷ	○	●
HSK E32/40000rpm(Oilmist) 15KW (Magnet Vector)	○	○	ꟷ
HSK E40/30000rpm(Grease) 20KW (Magnet Vector)	ꟷ	○	ꟷ
Hight precision temperature control system	●	●	●
chiller for spindle	●	●	●
Tool Magazine capacity
ATC Automatic tool changer (16 tools)	●	●	●
Automatic tool length measurement	●	●	●
Laser control NT	○	○	○
System controller
GENTEC M3HN (3 axis network)	●	●	●
GENTEC M4HN (4 axis network)	○	○	○
GENTEC M5HN (5 axis network)	○	○	○
SIEMEN S828D	○	○	○
SIEMEN S840D	○	○	○
Cutting Process
Cutting air blast	●	●	●
Graphite Cutting device	○	○	○
Oil mist blast	○	○	○
Oil mist Collector	○	○	○
Disk oil skimmer	○	○	○
Operational Support
MPG hand wheel	●	●	●
Ethernet card	●	●	●
X, Y, Z axis Linear scale	○	○	○
4th, 5th axis synchrinous control	ꟷ	○	○
Others
Power supply air conditioner	●	●	●
3 color machine signal tower light	●	●	●
Work lamp	●	●	●
Tool kit	●	●	●
1GB Dram GENTEC	●	●	●
2GB high capacity CFcard GENTEC	●	●	●
Tool Holder	○	○	○
Tool Collect	○	○	○
Pneumatic freezing dryer	○	○	○
Automatc voltage regulator	○	○	○
Interlligent information Management Center	○	○	○
Patented cooling system	○	○	○
Visual monitoring device	○	○	○
