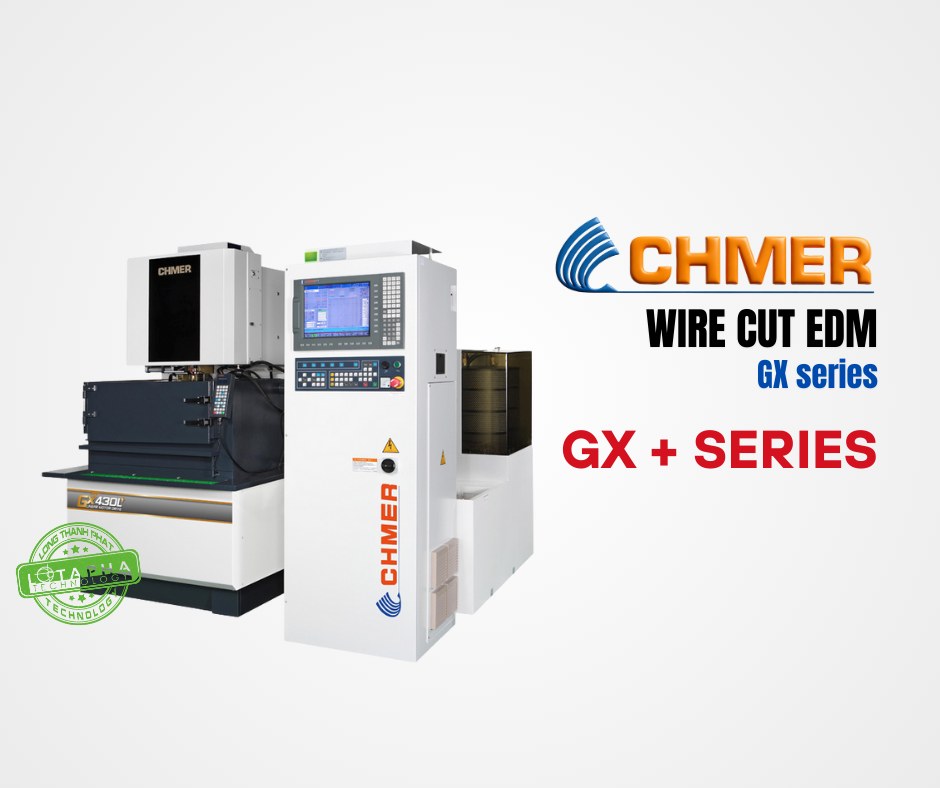

CHMER | GX+ - SERIES | MÁY CĂT DÂY EDM



1. Features      1.1 Environment Conditions      1.2 Space Requirement      1.3 Grounding      1.4 Demand of Air pressure      1.5 GX* series evolutionary transformation 2. Specifications      2.1 GX360L+      2.2 GX430L+      2.3 GX530L+      2.4 GX640L+ 3. Accessories 4. Product media

Machine Features

Environment Conditions:
1. Optimum Room Temperature: 23 + 0.5°C Humidity: Below to 75% RH
2. Avoid being Floor Vibration.
3. Avoid being located against sunshine.
4. Avoid being located against heat-treatment or plating plant nearby.
5. Clean and low dust environment.

Space Requirement:
Take notice of the space for machine stoke to move during normal operation and daily maintenance.

Grounding:
1. It's recommended to have an Earth Ground.
2. An independent ground is recommended.
3. The grounding cable should be 10 gage wire or larger.

Demand of Air pressure:
1. Air pressure of 6 kg/cm2 (95 PSI) for options of AWT and submerged machine is needed.

GX* series evolutionary transformation
GX Series provide the newest technologies with CHMER produced Linear Motors, Power & Servo stabilizer, Energy Saving, New energy-saving Generation AWT and W5F Controller, Inverter Type Water Chiller.

Machine Specifications


GX+ Series Specification
MODEL	UNIT	GX360L+	GX430L+	GX530L+	GX640L+
Axis travel (XxYxZ) (mm)	mm	360x250x220	400x300x220	500x300x220	600x400x300
Axis travel (UxV) (mm)	mm	60 x 60	60 x 60	60 x 60	100 x 100
Max Size of Workpiece (mm)	mm	725x560x215	725x600x215	825x600x215	910x700x295
Max Weight of workpiece (kg)	kg	300	350	500	600
XY Feed rate	mm/min	Max 1500 (mm/min)
Axis Drive System		X, Y axis by Linear Motor; U, V, Z axis by AC Servo Motor
Wire Diameter Range		Ø 0.15~0.3 (Ø 0.25) (Note Ø 0.1mm optional)
Max Wire Feed rate	mm/sec	300 mm/sec
Wire Tension	gf	300~2500 (gf)
Taper Angle		±14.5°/80 (Wide angle nozzle DA + DB= 15 mm)			±21°/100 (Wide angle nozzle DA + DB= 15 mm)
Machine Weight (kg)	kg	2500	2600	3195	3595
Working Fluid Supply Unit
Tank Capacity	L	590L	650L	650L	760L
Filter Element		Paper	Paper	Paper	Paper
Ion Exchange Resins	L	14L	14L	14L	14L
Conductivity Control		Auto	Auto	Auto	Auto
Fluid Temperature Control		Auto	Auto	Auto	Auto
Power Supply Unit
Circuit System		Power MOSFET Transistor
Max Output Current	A	25A
IP Select		10
Off Time System		50
CNC Unit
Date Input		Keyboard, RS-232C, USB, LAN
Display		15-Inch Color
Control System		32bit, 1-CPU, X Y Closed Loop
Control Axis		X, Y, U, V, Z (5 axis), 6th axis optional
Setting Unit	mm	0.001 mm
Max Command System	mm	±9999.999 mm
Interpolation		Linear/Circular
Command System		ABS/INC
Machining Feed Control		Servo/Const.Feed
Scaling		0.001-9999.999
Machining EDM Condition Memory		1000-9999
Total AC Power Input		3 Phase 220±5%/11KVA


Standard / Option Accessories


Standard/Optional Accessories			● Standard     ○ Option     ꟷ None
ITEM	SECIFICATION	AMOUNT	GX360L+	GX430L+	GX530L+	GX640L+
Paper Filter		2 pcs	●	●	●	●
UPPER / LOWER Diamond Guides	0.26 mm	2 pcs	●	●	●	●
UPPER / LOWER Flushing Nozzles		2 pcs	●	●	●	●
Energizing Carbides		2 pcs	●	●	●	●
Diamond Guide Remove Jig		1 pcs	●	●	●	●
Brass Wire	0.25mm x 5kg	1 roll	●	●	●	●
Tools		1 set	●	●	●	●
Ion Exchange Resins	6L	1 set	●	●	●	●
Alignment Jig		1 set	●	●	●	●
Brass Wire		1 set	●	●	●	●
AC Inverter Water Chiller	20000BTU	1 set	●	●	●	●
AC Power		1 set	●	●	●	●
USB Port		1 set	●	●	●	●
X, Y Axis Linear Motor	CHMER	1 set	●	●	●	●
X, Y Axis Glass Scale	0.5 um	1 set	●	●	●	●
Resuming Work Function		1 set	●	●	●	●
Remote Monitoring Function		1 set	●	●	●	●
Swivel TFT Panel		1 set	●	●	●	●
Auto Wire Threading Device		1 set	○	○	○	○
Energy Saving Power		1 set	●	●	●	●
HP-AVR		1 set	●	●	●	●
AC-u Fine finishing		1 set	○	○	ꟷ	ꟷ
30 kg jumbo wire feeder		1 set	○	○	○	○
Wire Chopper		1 set	○	○	○	○
0.1 mm Wire device		1 set	○	○	○	○
Rotary B-axis (6th axis function)	CHMER	1 set	○	○	○	○
