Mô tả

Since 2006, AMS Tech, with proficient R&D team, implements the spirier of "A"dvanced "M"achinery "S"olution achieving continuous breakthrough and innovation. To satisfy the different requests from top end customers, AMS Tech reclassifies AW Series and introduces new X series. With all new AW series, users can enjoy the powerful competitiveness achieving leading position in relative industries.

Chi tiết

Table of contents
1. Features
     1.1 Advanced rigid
     1.2 Revolutionary AWT system
     1.3 Linear Motor Driving system
2. Specifications
     2.1 AW3X/AW3L
     2.2 AW4E
     2.3 AW5E
     2.4 AW5X/AW5L
     2.5 AW6E

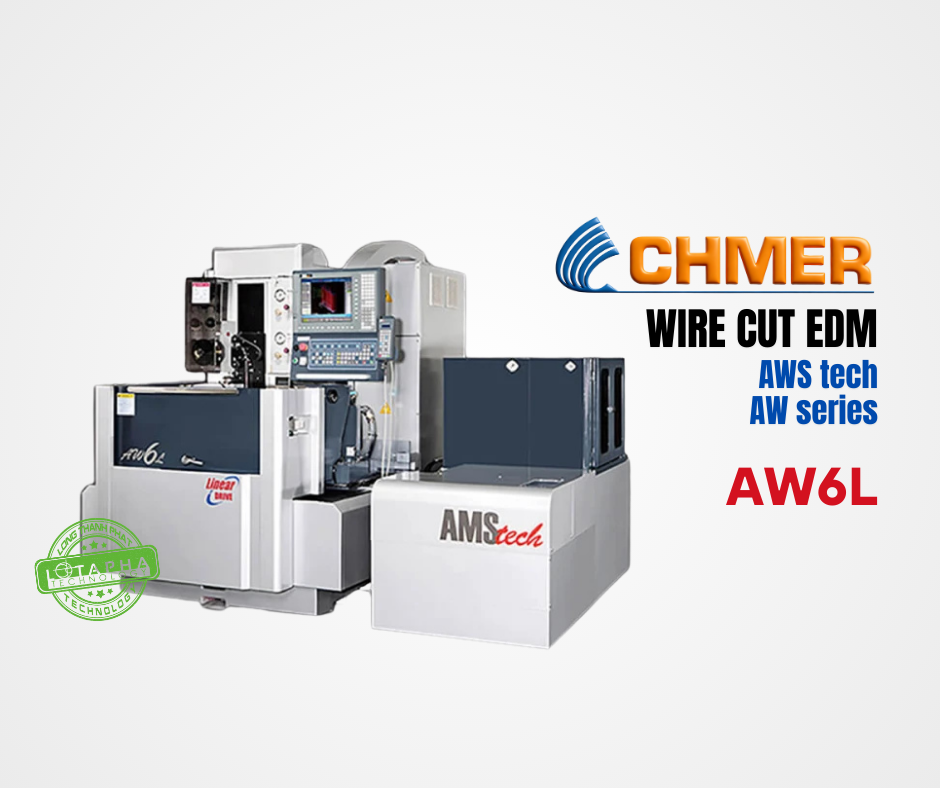

     2.6 AW6X / AW6L
     2.7 AW8L
     2.8 AW9L
     2.9 AW10L
     2.10 AW12L
     2.11 AW13L
     2.12 AW15L
3. Accessories
4. Product media

1. Product features:

Advanced rigid and thermal balanced structure

The AW series wire EDMs use a high strength T shape heavy ribbed casting that is designed with FEA "Finite Element Analysis” to assure perfect thermal balance needed for Linear Motor drive system.
The sliding door design is standard on AW9S and optional for the AW3,5 and 6 series. This design makes it easier to walk around the front of the machine when setting up a part, reduces the system footprint by eliminating the extra space required for the swing outdoor and makes the machine ready to accept peripheral devices such as robotic arms.

Revolutionary AWT system

High speed auto threading in less than 8 seconds.
Rethreading at the wire break point instead of returning to start point.
Reliability and reduced maintenance costs are assured by only having 5 moving parts.
The unique AWT heater coil wire cutting system eliminates the typical high maintenance required by mechanical wire cutter devices.
The CNC monitors and displays every step of the threading process for easy system diagnostics.
Reliable automatic wire threading control system.

Linear motor driving system

Linear motor drives with precision glass scales provide fully closed loop system for high accuracy positioning and part shape definition versus ball screw drives. Quick response, low vibration and virtually zero backlash results in better accuracy and finish with fewer passes. The assembly of ball-screw coupling with motor appears to create mechanical tolerance after a few years while linear motor does not, so no accuracy loss since the beginning!

2. Product Specifications

AW Series Specifications
MODEL	UNIT	AW3X/AW3L		AW4E	AW5E	AW5X/AW5L
Dimension
X, Y Travel	mm	370 x 270		400 x 300	500 x 300	560 x 360
U, V, Z Travel	mm	100 x 100 x 260		100 x 100 x 260	100 x 100 x 260	120 x 120 x 300
Max size of work piece	mm	L750 x W550 x H260		L750 x W550 x H260	L950 x W6950 x H300	L950 x W650 x H300
Max weight of work piece	kg	400		500	500	500
Max X, Y rapid Traverse	mm/min	Max 800		Max 800	Max 800	Max 1500
Motor Driver system		AC Servo Motor		AC Servo Motor	AC Servo Motor	AC Servo Motor
Wire diameter	mm	Ø0.1 ~ 0.3 (Ø0.2)	Ø0.15 ~ 0.3 (Ø0.2)	Ø 0.15 (Ø 0.2)	Ø 0.15 ~ 0.3	Ø 0.1 ~ 0.3 (Ø0.2)	Ø 0.15 ~ 0.3 (Ø0.2)
Max wire feed	mm/sec	300		300	300	300
Wire tension	gf	200 ~ 2500		200 ~ 2500	200 ~ 2500	200 ~ 2500
Taper Angle		±21°/110 mm (wide angle nozzle DA + DB= 15 mm)		±21°/110 mm (wide angle nozzle DA + DB= 15 mm)	±21°/110 mm (wide angle nozzle DA + DB= 15 mm)	±21°/110 mm (wide angle nozzle DA + DB= 15 mm)
N.W (Incl Power Supply)	kg	4,700 + 280	4,600 +250	4,600 + 280	4,800 + 300	5,300 + 320
Dielectric Supply Unit
Filter Material	pcs	Paper x2		Paper x3	Paper x3	Paper x3
Conductivity Control		Auto		Auto	Auto	Auto
Dielectric Temp Control		Auto		Auto	Auto	Auto
Capacity	L	700		900	900	900
N.W (Incl Power Supply)	kg	280		320	320	320


MODEL	UNIT	AW6E	AW6X / AW6L		AW9L
Dimension
X, Y Travel	mm	600 x 400	650 x 450		920 x 620
U, V, Z Travel	mm	120 x 120 x 300	120 x 120 x 300		200 x 200 x 400
Max size of work piece	mm	L1050 x W750 x H300	L1050 x W750 x H300		L1300 x W1000 x H400
Max weight of work piece	kg	600	600		1000 kg
Max X, Y rapid Traverse	mm/min	Max 800	Max 800		Max 1500
Motor Driver system		AC Servo Motor	AC Servo Motor		AC Servo Motor
Wire diameter	mm	Ø 0.15 (Ø 0.2)	Ø 0.1 ~ 0.3 (Ø 0.2)	Ø 0.1 ~ 0.3 (Ø 0.2)	0.15 ~ 0.3 (0.2)
Max wire feed	mm/sec	300	300		300
Wire tension	gf	200 ~ 2500	200 ~ 2500		200 ~2500
Taper Angle		±21°/110 mm (wide angle nozzle DA + DB= 15 mm)	±21°/110 mm (wide angle nozzle DA + DB= 15 mm)		±21°/110 mm (wide angle nozzle DA + DB= 15 mm)
N.W (Incl Power Supply)	kg	5200 + 320	650 kg 450 (5200 + 320 kg		8000 + 600
Dielectric Temp Control
Filter Material	pcs	Paper x3	Paper x3		Paper x3
Conductivity Control		Auto	Auto		Auto
Dielectric Temp Control		Auto	Auto		Auto
Capacity	L	900	1100	1050	1250
N.W (Incl Power Supply)	kg	329	500	350	600


MODEL	UNIT	AW8l	AW10L	AW12L	AW13L	AW15L
X, Y Travel	mm	850 x 550	1000 x 800	1200 x 800	1300 x 1000	1500 x 1000
U, V, Z Travel	mm	160 x 160 x 350	160 x 160 x350	160 x 160 x 350	160 x 160 x 350	160 x 160 x 350
Max size of work piece	WxDxH mm	1200x1000x350	1500x1300x350	1700x1300x350	1500x1200x350	1700x1200x350
Max weight of work piece	kgw	3000	3500	4000	5000	6000
Max X, Y Rapid Traverse	mm/min	Max 1500	Max 1800	Max 1800	Max 1800	Max 1800
Motor Driver system		XY Linear Motor	XY Linear Motor	XY Linear Motor	XY Linear Motor	XY Linear Motor
Wire diameter	mm	Ø 0.2 ~ 0.3 (Ø 0.25)	Ø 0.2 ~ 0.3 (Ø 0.25)	Ø0.2 ~ 0.3 (Ø0.25)	Ø0.2 ~ 0.3 (Ø0.25)	Ø0.2 ~ 0.3 (Ø0.25)
Max wire feed	mm/sec	300	300	300	300	300
Wire tension	gf	200 ~ 2500	200 ~ 2500	200 ~ 2500	200 ~ 2500	200 ~ 2500
Taper Angle		±21°/190 (Wide angle nozzle DA + DB= 15 mm)	±21°/190 (Wide angle nozzle DA + DB= 15 mm)	±21°/190 (Wide angle nozzle DA + DB= 15 mm)	±21°/190 (Wide Angle Nozzle Da + Db= 15 Mm)	±21°/190 (Wide angle nozzle DA + DB= 15 mm)
Appearance	WxDxH mm	4050x4450x2500	4250x4700x2500	4450x4700x2500	4600x4900x2500	5100x5000x2500
N.W (Incl Power Supply)	kg	10,000	11,000	12,000	12,500	13,000
Capacity	L	2,500	2,800	3,000	3,500	4,000

Standard/Optional Accessories
ITEM	SPECCIFICATION	● Standard ○ Option ꟷ Not Available
ITEM	SPECCIFICATION	Q'TY	E type	L type	X type
Water chiller	2 Tons/3 Tons (AW9)	1 set	●	●	●
2-in-1 AVR+Tranformer		1 set	●	●	●
AWT (Auto wire threading device)		1 set	○	●	●
AC Power		1 set	●	●	●
OV Circuit		1 set	●	●	●
TFC Circuit	*N/A for AW9L	1 set	○	●	●
USB Function		1 set	●	●	●
Swivel Panel		1 set	●	●	ꟷ
Console Panel		1 set	ꟷ	ꟷ	●
Touch Screen		1 set	○	○	●
Ethernet Network Transmission		1 set	●	●	●
Resuming work Function		1 set	●	●	●
X&Y Axis Liner Motor		1 set	ꟷ	●	●
X&Y Axis Glass Scale	0.5 um	1 set	○	●	●
0.1 mm Wire Device		1 set	○	○	●
Rotary B-Axis (6th Axis Function)	CHMER / PARKSON	1 set	○	○	○
3~20kg Jumbo Wire Spooler		1 set	○	○	●
Automatic wire Chopper		1 set	○	○	○
Sliding Door	Manual type	1 set	ꟷ	●	ꟷ
Drop Door	x1 H.P.Pump	1 set	ꟷ	ꟷ	●
Aux Water Jet Assistant for threading		1 set	○	○	○
DTC water Control		1 set	○	○	○
Z-Axis Heigh= 400 mm		1 set	○	○	○
Window CE		1 set	○	○	○
